Product description

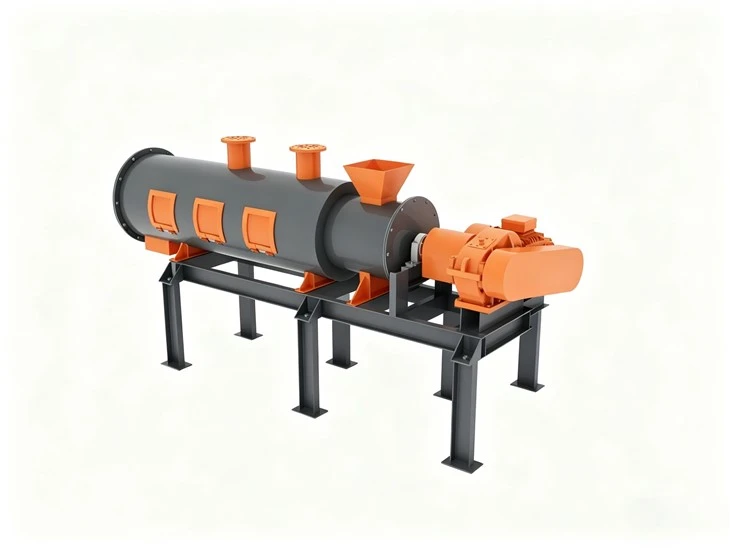

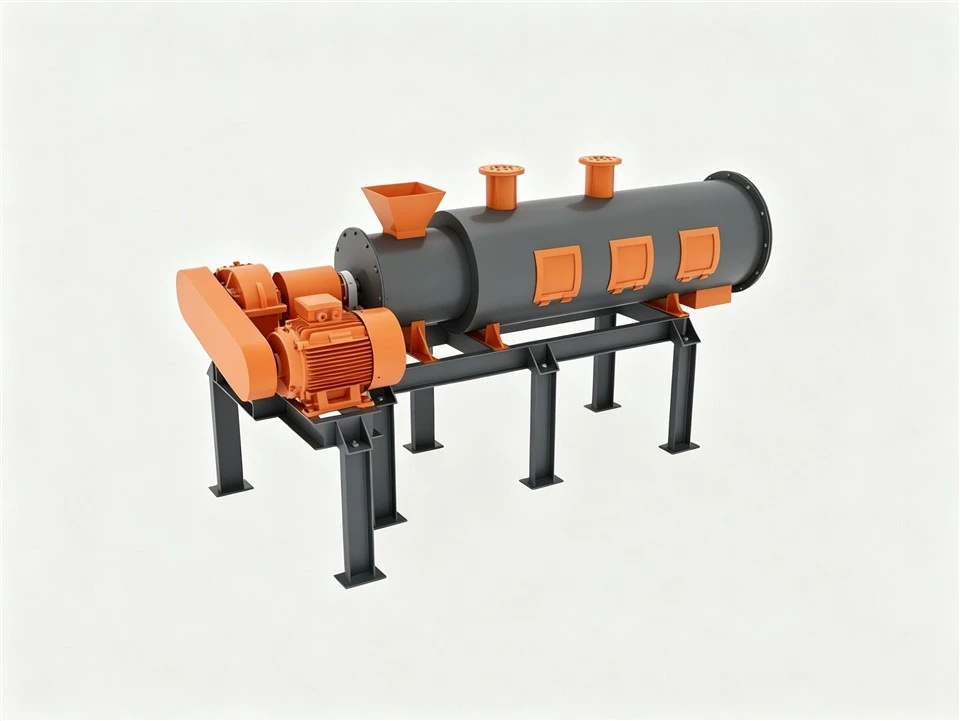

The Organic Fertilizer Stirring Pin Granulator is a new type of organic fertilizer granulating equipment. It is mainly suitable for granulating high-fiber organic fertilizer powder with a moisture content of over 30%. Boasting a high granulation rate and low failure rate, this equipment is highly favored by numerous small and medium-sized organic fertilizer factories and ranch owners. Our company's version of this equipment has been successfully exported to dozens of countries and regions worldwide, making it the optimal choice for newcomers entering the organic fertilizer production industry.
Working Principle
The Organic Fertilizer Stirring Pin Granulator utilizes the mechanical stirring force generated by high-speed rotation, as well as the aerodynamic force derived therefrom, to enable fine powder materials to continuously undergo mixing, granulation, spheroidization, densification and other processes inside the machine, thus achieving the purpose of granulation. This granulation method results in a higher spheroidization rate of the produced granules and more uniform particle morphology, while also saving energy.
Hot Tags: organic fertilizer stirring pin granulator, China organic fertilizer stirring pin granulator manufacturers, factory
Product Specification
|
Model |
MWJZ-600 |
MWJZ-800 |
MWJZ-1000 |
MWJZ-1200 |
MWJZ-1500 |
|
Inclination Angle |
2°~2.5° |
2°~2.5° |
2°~2.5° |
2°~2.5° |
2°~2.5° |
|
Capacity(t/h) |
1~1.5 |
1.5~2.5 |
2~4 |
4~6 |
6~8 |
|
Total Power(kw) |
37 |
55 |
75 |
90 |
110 |
|
Moisture Of Feeding Material |
35%~45% |
35%~45% |
35%~45% |
35%~45% |
35%~45% |
|
Size Of Feeding Material(mesh) |
50 |
50 |
50 |
50 |
50 |
|
Dimensions(mm) |
4100×1600×1150 |
4250×1850×1300 |
4700×2350×1600 |
4900×2550×1800 |
5500×2800×2000 |
