Product Description
The Adjustable Angle Disc Granulator stands as a classic granulation apparatus within fertilizer equipment, finding extensive application in the production of granules for organic fertilizers, compound fertilizers, cat litter pellets, and similar materials. This equipment features a straightforward structure and stable performance. The Adjustable Angle Disc Granulator adopts an overall curved design, with a base engineered for enhanced weight and thickness, achieving a pelletisation rate exceeding 90%.
Working Principle

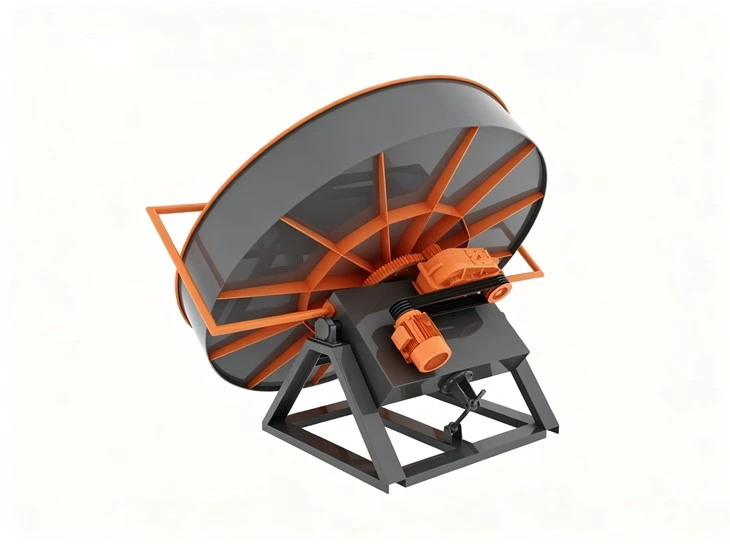

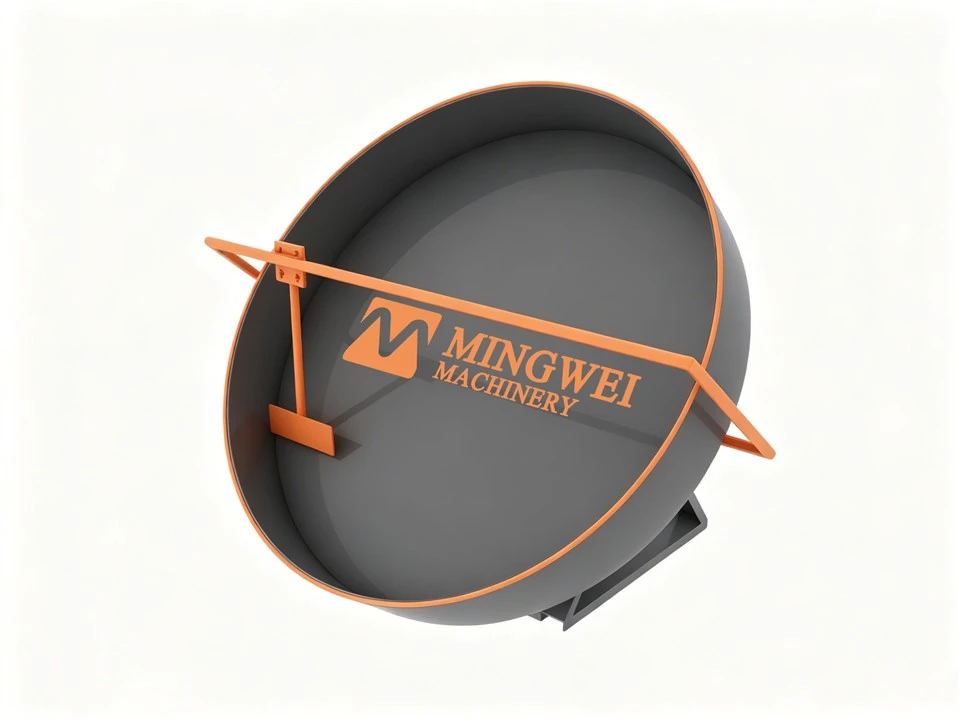

The disc granulator comprises a granulating disc, transmission system, spraying system, and frame. It utilises the combined forces of friction, gravity, and centrifugal force acting upon materials within an inclined rotating disc to achieve rolling and pelletisation.
Hot Tags: adjustable angle disc granulator, China adjustable angle disc granulator manufacturers, factory
Product Specification
|
Model |
Diameter Of Disc (mm) |
Edge Height (mm) |
Rotary Speed (r/min) |
Motor Power (kw) |
Capacity (t/h) |
Dimensions (mm) |
|
MWYZ-500 |
500 |
200 |
32 |
0.55 |
0.02–0.05 |
650×600×800 |
|
MWYZ-600 |
600 |
280 |
33.5 |
0.75 |
0.05–0.1 |
800×700×950 |
|
MWYZ-800 |
800 |
200 |
21 |
1.5 |
0.1–0.2 |
900×1000×1100 |
|
MWYZ-1000 |
1000 |
250 |
21 |
1.5 |
0.2–0.3 |
1200×950×1300 |
|
MWYZ-1200 |
1200 |
250 |
21 |
1.5 |
0.3–0.5 |
1200×1470×1700 |
|
MWYZ-1500 |
1500 |
300 |
21 |
3 |
0.5–0.8 |
1760×1500×1950 |
|
MWYZ-1800 |
1800 |
300 |
21 |
3 |
0.8–1.2 |
2060×1700×2130 |
|
MWYZ-2000 |
2000 |
350 |
21 |
4 |
1.2–1.5 |
2260×1650×2250 |
|
MWYZ-2500 |
2500 |
450 |
14 |
7.5 |
1.5–2.0 |
2900×2000×2750 |
|
MWYZ-2800 |
2800 |
450 |
14 |
11 |
2–3 |
3200×2200×3000 |
|
MWYZ-3000 |
3000 |
450 |
14 |
11 |
2–4 |
3400×2400×3100 |
|
MWYZ-3600 |
3600 |
450 |
13 |
18.5 |
4–6 |
4100×2900×3800 |
