Product description

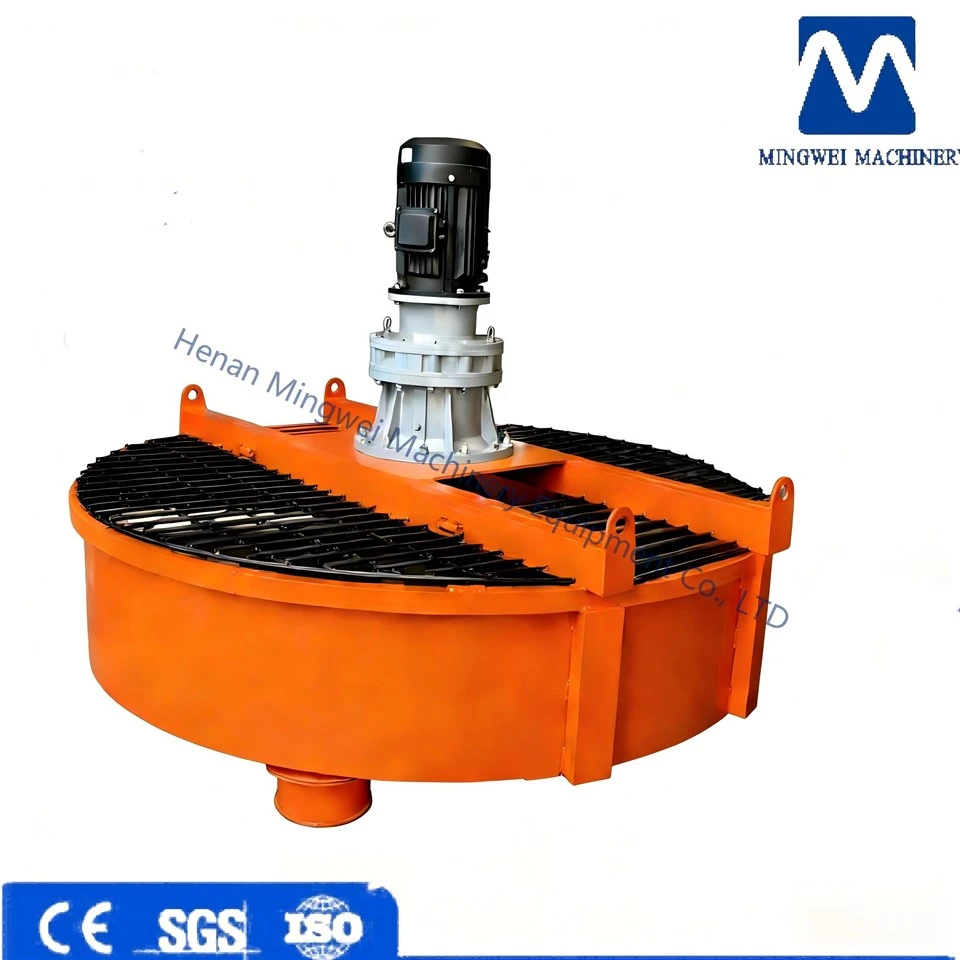

The disc mixer is a compact mixing machine featuring stable operation and uniform mixing performance. The spiral blades are made of high wear-resistant special alloy. Materials are fed from the top and discharged from the bottom, with a well-designed and reasonable structure. It is commonly used in small and medium-scale fertilizer processing plants.
Working Principle
The disc mixer generates strong radial flow and dispersing force during operation. As the blades rotate, a vortex is formed inside the mixing chamber, causing the materials to circulate and tumble with low resistance. This continuous rolling and circulation enable fast and uniform mixing of materials.
Hot Tags: disc type mixer, China disc type mixer manufacturers, factory
Product Specification
|
Model |
MWP-1600 |
MWP-1800 |
MWP-2000 |
MWP-2200 |
MWP-3000 |
|
Mixing Capacity (t/h) |
2–4 |
3–5 |
4–6 |
6–8 |
8–12 |
|
Edge Height (mm) |
400 |
400 |
400 |
400 |
400 |
|
Disc Diameter (mm) |
1600 |
1800 |
2000 |
2200 |
3000 |
|
Motor Power (kW) |
7.5 |
7.5 |
7.5 |
7.5 |
15 |
|
Reducer Model |
BLD15-87 |
BLD15-87 |
BLD15-87 |
BLD15-87 |
XLD9-87 |
|
Mixing Speed (r/min) |
16 |
16 |
16 |
16 |
16 |
|
Main Plate Thickness (mm) |
5 |
5 |
5 |
5 |
5 |
|
Bottom Plate Thickness (mm) |
8 |
8 |
8 |
8 |
8 |
|
Overall Dimensions (mm) |
1600 × 1600 × 1800 |
1800 × 1800 × 1800 |
2000 × 2000 × 1800 |
2200 × 2200 × 1850 |
3000 × 3000 × 2000 |
